1) What this guide solves
If you want a clean, frameless look and confidence that your plate stays firm at speed and in car washes, follow this step-by-step. It applies to the MagSleem series on standard grilles and Audi-style honeycomb setups.

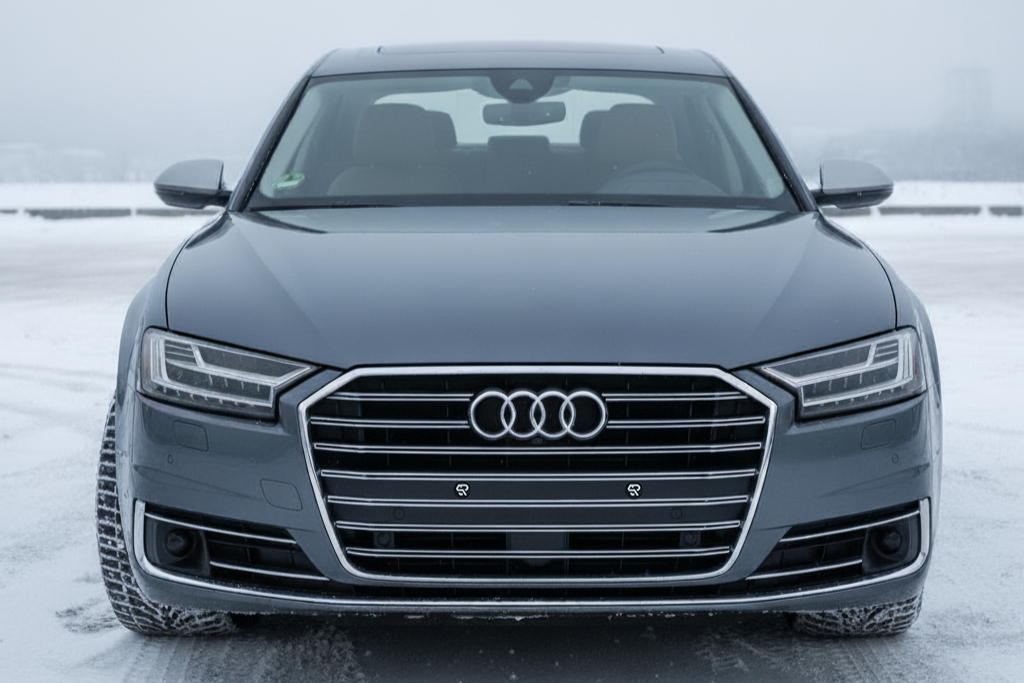

2) Audi honeycomb grille compatibility: included kit & correct install
SleemPlate kits include dedicated hardware to clamp from behind the honeycomb cell (no drilling in the bumper itself):
-
2 special screws + 2 nuts (for captive mounting through the cell)
-
2 blocks that sit behind the honeycomb cell
-
2 extenders when cells are larger
-
For MagSleem kits: 2 puck extenders for the magnet pucks
Critical measurements & tips
-
Puck diameter: Ø28.4 mm, extendable to 40.2 mm with the puck extender
-
Block height: 36 mm tip-to-tip; we recommend 32 mm max honeycomb cell height without extender
-
With extender, the system accommodates up to 40 mm; we recommend 36 mm max for best seating and retention
-
All current kits are screw-mounted. Cross-head screws, no washers.
Quick steps (Audi – honeycomb)
-
Pick two symmetric honeycomb cells that are centered/level.
-
Place the blocks behind the grille cell and hold in place.
-
Thread the special screws through the magnet+puck then into the blocks; tighten firmly (don’t overtighten).
-
Snap the caps on the pucks.
-
Offer the plate to the MagSleem holders; press evenly so both lateral points seat.
-
For millimetric alignment, use SleemFix. (included in the MagSleem X kit)
Compatibility note: Target format is EU 520×110 mm. MagSleem X works with any plate size worldwide. Bumper material doesn’t matter (aluminum/plastic/steel) because retention is magnet–magnet via screw-mounted pucks. No issues observed with ACC/radar/parking sensors; don’t cover radar windows.
3) The simple physics (educational)
Dynamic pressure grows with speed:
q ≈ 0.5 × ρ × v² (ρ ≈ 1.225 kg/m³; v in m/s).
At ~300 km/h (~83.3 m/s), q ≈ 4,250 Pa. An EU plate area is ~0.057 m², so an idealized load is ~240 N (~24.5 kgf). Real cars have angles/turbulence and the magnets share the load across two lateral points / four magnets, so actual loads differ.
Takeaway: correct install + even distribution across pucks + sensible checks = real-world safety.
Note: simplified model for education; not a certification.
4) 10-minute real-world test protocol
-
Static pull: tug at both lateral points - no play.
-
Vibration check: light taps around pucks (no metal tools) - the plate shouldn’t flutter.
-
Short city drive: 5–10 km on rough asphalt; re-check tightness.
-
Highway, progressive: step up gradually (e.g., 100 → 120 → 130 km/h; 60 → 70 → 80 mph) with checks.
-
Car-wash: keep the jet ≥30–40 cm and at an oblique angle; avoid blasting under edges. (Internal tests were OK close to ~20 cm, but keep margin.)
5) Care & best practices
-
No maintenance required. Optional: quick rinse after salty winters.
-
Avoid slamming magnets together (any magnet can chip under shock).
-
Ensure the plate is perfectly flat for even seating and high-speed stability.
My panel is aluminum/plastic - will magnets “stick”? Yes, because SleemPlate uses magnet–magnet coupling via screw-mounted pucks. Panel material is irrelevant.
6) Troubleshooting
-
Misalignment: use SleemFix or re-position pucks slightly.
-
Chipped magnet: usually shock/over-tightening → replace the magnet (see Spare parts).
-
High-speed flutter: re-seat so both lateral points bite evenly; ensure plate is flat.
-
Aggressive wash: increase distance/angle; avoid direct under-edge jets.
7) FAQ (short)
-
Will it fit my car? Yes. MagSleem holders are universal; honeycomb/aftermarket grilles have dedicated hardware in the box. For non-EU sizes, MagSleem X is compatible worldwide.
-
Safe at speed / winter / wash? Yes—when installed correctly and with quick sensible checks. Real-world Autobahn, off-road and track use have been validated.
-
Legal? Plates must be mounted in the designated front & rear positions and remain visible; correct installation meets those principles. Outside EU/RO, check local rules.
-
Will it scratch paint? Pucks/caps are designed to protect; always install on clean surfaces.
-
Warranty & returns? 2-year EU, 1-year elsewhere; 14-day EU withdrawal + 90-day satisfaction return if intact.
